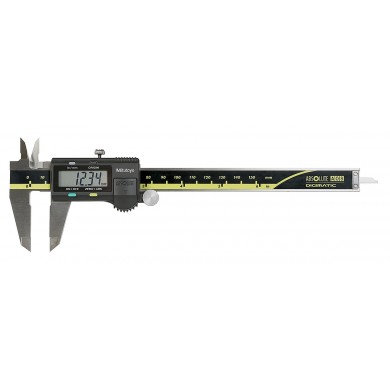

Mitutoyo ABSOLUTE AOS Digimatic Caliper 0-150mm / 0-6"

Part Number : 500 -196 - 30

Availability : In Stock

A Mitutoyo digital caliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with the latest electromagnetic ABSOLUTE AOS System scale for error free, high-speed measurement.

Large and clear LCD readout.
The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button also allows return to the absolute (ABS) mode for displaying the true position from the origin (usually the jaws-closed point).

DESCRIPTION

Specifications :

No. 500-196-30
Type : Standard
Range : 0-150mm / 0-6"
Resolution : 0.01mm / .0005"
Accuracy : ±0.02mm / ±.001"
Scale type : AOS (Advanced Onsite Encoder) Electromagnetic induction type ABS encoder
Repeatability : 0.01mm
Fine adjustment with thumb roller
Depth bar : Blade
Display : LCD
Max. response speed : Unlimited
Battery : SR44
Battery Life : Approx 3.5 years under normal use
Functions :Origin-set, Zero-set, Inch/mm, Automatic, Low Voltage alarm, Counting Value Composition Error alarm.
