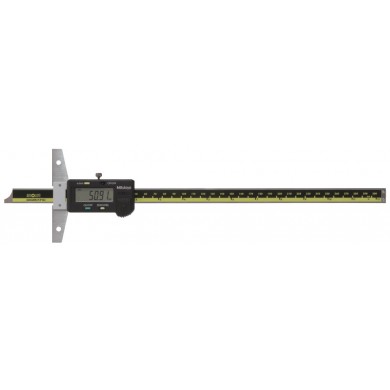

Mitutoyo ABSOLUTE Digimatic Depth Gauge 0-300mm / 0-12"
Part Number : 571-213-10
Availability : In Stock
A Mitutoyo digital depth gauge with a 3.93" base. Hardened stainless steel construction. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
- The ABSOLUTE Digimatic Depth Gauge keeps track of the origin point (once set) for the entire life of the battery.
- Base and measuring faces are harderned and micro-lapped.
- Optional wider extension bases are available.
Specifications :
- No. 571-213-10
- Range : 0-300mm / 0-12"
- Resolution : 0.01mm / .0005"
- Accuracy : ±0.03mm / ±.0015"
- Repeatability : 0.01mm
- Display : LCD
- Base : 3.93" x .23"
- Scale type : ABSOLUTE linear encoder
- Max. response speed : Unlimited
- Battery : SR44
- Battery Life : Approx 20,000 hours under normal use
- Data Output : Yes
