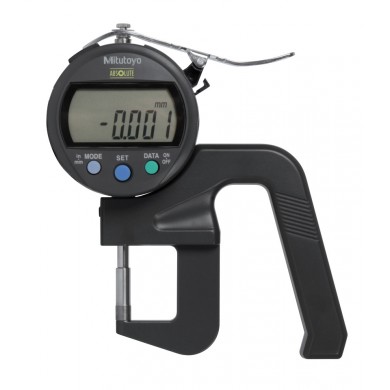

Mitutoyo ABSOLUTE Digimatic Thickness Gauge 0-12mm / 0-.47"

Part Number : 547-400S
Availability : In Stock

A Mitutoyo high-resolution digital-indicator based instrument designed for quick and efficient measurement of small dimensions. Ideally suited for precise measurement of the thickness of paper, film, wire, sheet metal and similar materials. The convenient grip handle, thumb trigger and spring-loaded plunger make the instrument easy to use.

  • For measuring film, paper etc. with a resoultion of 0.001mm/ .00005".
  • Unique thickness gauge equipped with the ABSOLUTE DIGIMATIC Indicator IDC.
  • The origin is set only once and is stored as the absolute origin until the battery is replaced.
  • Measuring precision even at highest drive speed.
  • Large display characters for easy reading.
  • Lightweight construction.

Specifications :



  • No. 547-400S
  • Range : 0-12mm/ 0-.47"
  • Accuracy : ±3µm
  • Resolution : 0.001mm / .00005"
  • Data Output : Yes
  • Display : LCD
  • Battery : SR44
  • Battery Life : Approx 7,000 hours under normal use
  • Dust / Water protection level IP42
  • Max. response speed : Unlimited
  • Measuring Force : 3.5N or less
  • Stem : 8mm
  • Scale type : ABSOLUTE electrostatic linear encoder
  • Remarks : High accuracy, carbide spindle/ anvil
