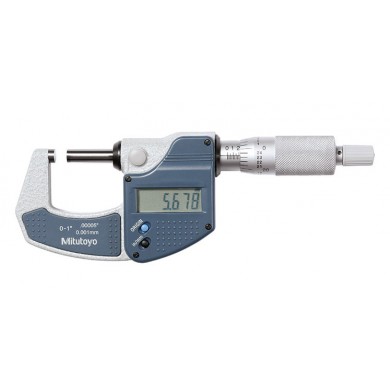

Mitutoyo Digimatic Micrometer 0-25mm

Part Number : 293-831-30
Availability : In Stock

A basic, cost-effective Mitutoyo digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

  • Simply measures 0 through 25mm with resolution to 0.001mm.
  • Provided only with an origin-set button for easy origin setting.
  • A ratchet stop or friction thimble for a constant measuring force.
  • Measurement readout with large characters on the LCD screen.

Specifications :

  • No. : 293-831-30
  • Type : Standard
  • Range : 0-25mm / 0-1"
  • Resolution : 0.001mm / .00005"
  • Accuracy : ±2µm / ±.0001"
  • Display : LCD
  • Flatness : 0.3µm
  • Measuring Faces : Carbide
  • Parallelism : 2µm / .00008"
  • Battery : SR44
  • Battery Life : Approx. 1.2 years under normal use
  • Remarks : Ratchet Stop
